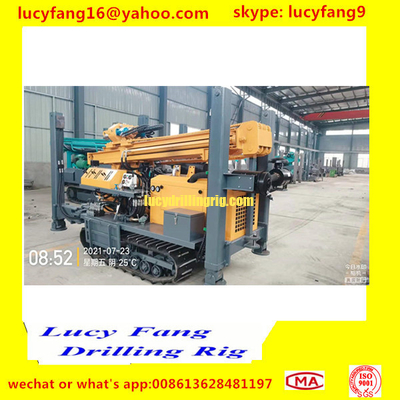

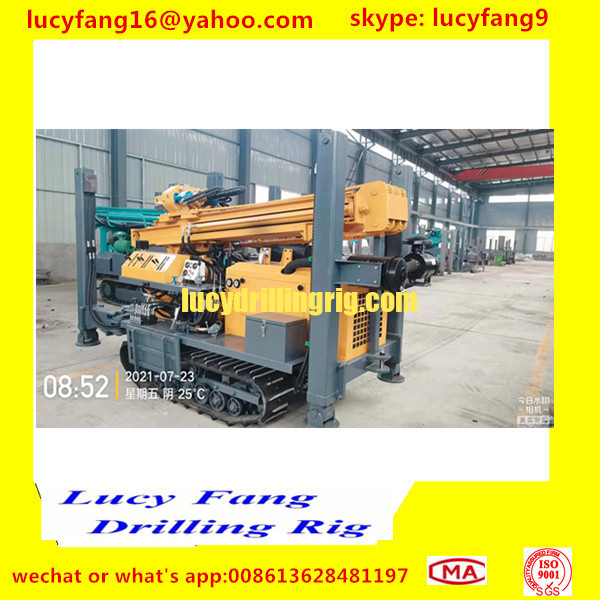

Track Mounted High Drilling Efficiency Water Well Drilling Rig with DTH hammer Drilling

Track Mounted High Drilling Efficiency Water Well Drilling Rig with DTH hammer Drilling

    • Track Mounted High Drilling Efficiency Water Well Drilling Rig with DTH hammer Drilling
    • Track Mounted High Drilling Efficiency Water Well Drilling Rig with DTH hammer Drilling
    • Track Mounted High Drilling Efficiency Water Well Drilling Rig with DTH hammer Drilling
    • Track Mounted High Drilling Efficiency Water Well Drilling Rig with DTH hammer Drilling
    • Track Mounted High Drilling Efficiency Water Well Drilling Rig with DTH hammer Drilling

    Détails sur le produit:

    Lieu d'origine: Chine
    Certification: ISO901,CE

    Conditions de paiement et expédition:

    Quantité de commande min: 1
    Détails d'emballage: 3950 * 1630 * 2250 Emballage régulier
    Conditions de paiement: T/T, L/C, D/A, D/P, Western Union
    Capacité d'approvisionnement: 1 + set +
    Contactez
    Description de produit détaillée
    Taper: équipement de forage de puits d'eau Typte machine: Type de robot
    Matériel: composants acier, caoutchouc, hydrauliques traitement: Couper, forger, lancer
    Utiliser: puits d'eau perçage, paquet de forage Couleur: Jaune
    Poids: 4.5T Dimension: 3950 mm * 1630 mm * 2250 mm
    Couple: 3200-4500 nm Vitesse rotative: 45-70 tr / min
    Contacter pers: Lucy Fang Whatsapp: 008615923510719



                                                    Sweies of water well drilling rig



    Application field:



    Main USES and teatures of products:

       series well drilling rig is a kind of light, high efficient and muiti-function crawler-type full hydraulic drill, has advanced structure, easy to use, configuration standardization, short assistant time, fast drilling rock , low failure rate characteristics, widely used om drilling wells, wells and other holes engineering, espcially suitable for urban construcion in zonetie source heat pump air conditioning hole drilling. The series of drilling rigs uses compressed-air DTH to drill at high rates of penetration into rock in the Prinell f 620 range.



      Technology specification

                                                            180 Water Well Drilling Rig
    The weight        4.5 Drill pipe diamater Ø76 Ø89
    The hole diamater (mm)      140-254 Drill pipe length   1.5m  2.0m  2.6m
    Drilling depth (m)   180 Rig lifting force (f)   12
    One-time advance length (m)   3.3 Rapid rise speed (m/min)   20
    Walking speed (km/h)   2.5  Fast feeding speed (m/min)   48
    Climbing angles (Max) 30 Width of loading (m) 2.4
    Equipped capadtor (kw) 55 Hoisting force of winch (T)
    Using air pressure (MPA) 1.7-2.5 Swing torque (N.m) 3200-4500
    Air consumption (m3/min) 17-23 Dimension (mm) 3950x1630x2250
    Swing speed (mm) 46-70 equipped with hammer Medlum and high wind pressure series
    The pentration efficiency (m/h) 10-35 High leg stoke (m) 1.4
    The engine brand    Quanchai engine



    Track Mounted High Drilling Efficiency Water Well Drilling Rig with DTH hammer DrillingTrack Mounted High Drilling Efficiency Water Well Drilling Rig with DTH hammer DrillingTrack Mounted High Drilling Efficiency Water Well Drilling Rig with DTH hammer DrillingTrack Mounted High Drilling Efficiency Water Well Drilling Rig with DTH hammer DrillingTrack Mounted High Drilling Efficiency Water Well Drilling Rig with DTH hammer Drilling



    Track Mounted High Drilling Efficiency Water Well Drilling Rig with DTH hammer Drilling
