Aperçu Produitséquipement de forage de puits d'eau

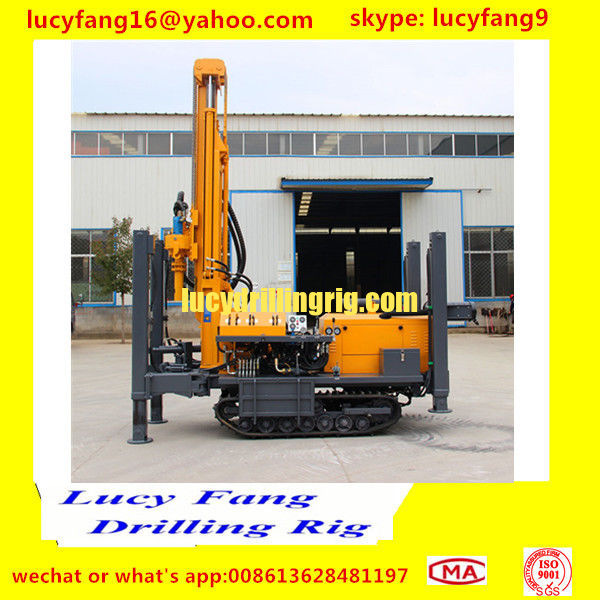

Hydraulic truck mounted water well drilling rig. 600m crawler type Borehole water well

Hydraulic truck mounted water well drilling rig. 600m crawler type Borehole water well

Hydraulic truck mounted water well drilling rig. 600m crawler type Borehole water well

Détails sur le produit:

Certification: ISO901,CE

Conditions de paiement et expédition:

Quantité de commande min: 1
Détails d'emballage: 3950 * 1630 * 2250 Emballage régulier
Conditions de paiement: L / C
Capacité d'approvisionnement: 1 + set +
Contactez
Description de produit détaillée
Taper: équipement de forage de puits d'eau Type de machine: Type de robot
Matériel: composants acier, caoutchouc, hydrauliques traitement: Couper, forger, lancer
Utiliser: puits d'eau perçage, paquet de forage Couleur: Jaune
Poids: 4.5T Dimension: 3950 mm * 1630 mm * 2250 mm
Couple: 3200-4500 nm Vitesse rotative: 45-70 tr / min
Personne de contact: Lucy Fang Whatsapp: 008615923510719



                                                 Sweies of water well drilling rig



Application field:



Main USES and teatures of products:

   series well drilling rig is a kind of light, high efficient and muiti-function crawler-type full hydraulic drill, has advanced structure, easy to use, configuration standardization, short assistant time, fast drilling rock , low failure rate characteristics, widely used om drilling wells, wells and other holes engineering, espcially suitable for urban construcion in zonetie source heat pump air conditioning hole drilling. The series of drilling rigs uses compressed-air DTH to drill at high rates of penetration into rock in the Prinell f 620 range.



  Technology specification

                                                        FY180 Water Well Drilling Rig
The weight        4.5 Drill pipe diamater Ø76 Ø89
The hole diamater (mm)      140-254 Drill pipe length   1.5m  2.0m  2.6m
Drilling depth (m)   180 Rig lifting force (f)   12
One-time advance length (m)   3.3 Rapid rise speed (m/min)   20
Walking speed (km/h)   2.5  Fast feeding speed (m/min)   48
Climbing angles (Max) 30 Width of loading (m) 2.4
Equipped capadtor (kw) 55 Hoisting force of winch (T)
Using air pressure (MPA) 1.7-2.5 Swing torque (N.m) 3200-4500
Air consumption (m3/min) 17-23 Dimension (mm) 3950x1630x2250
Swing speed (mm) 46-70 equipped with hammer Medlum and high wind pressure series
The pentration efficiency (m/h) 10-35 High leg stoke (m) 1.4
The engine brand    Quanchai engine



Hydraulic truck mounted water well drilling rig. 600m crawler type Borehole water wellHydraulic truck mounted water well drilling rig. 600m crawler type Borehole water wellHydraulic truck mounted water well drilling rig. 600m crawler type Borehole water wellHydraulic truck mounted water well drilling rig. 600m crawler type Borehole water wellHydraulic truck mounted water well drilling rig. 600m crawler type Borehole water well



Hydraulic truck mounted water well drilling rig. 600m crawler type Borehole water well
