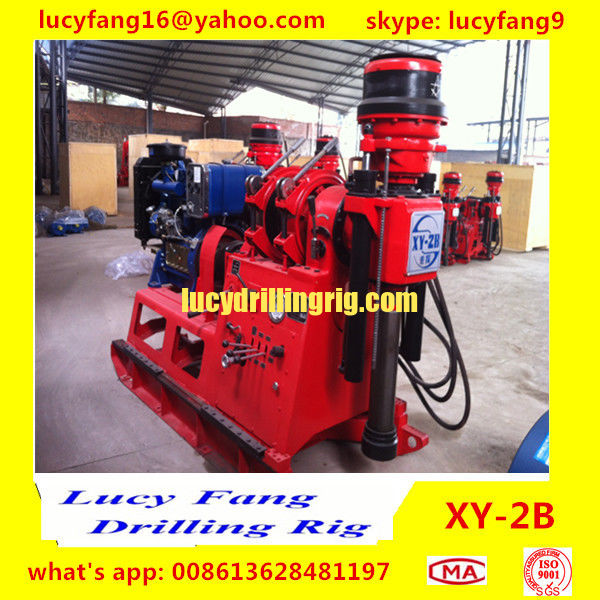

Name: Chongqing High Quality XY-2B Portable Earth Auger Drilling Rig
Brand: Chongqing Spring Tech And Trade Co., Ltd
SKU: XY-2B
Price: 6,000.00 USD
Availability: InStock

Aperçu Produits plate-forme de forage de noyau de diamant

Chongqing High Quality XY-2B Portable Earth Auger Drilling Rig

Détails sur le produit:

Lieu d'origine:	Chongqing
Certification:	ISO9001-2008
Numéro de modèle:	XY-2B

Conditions de paiement et expédition:

Quantité de commande min:	1 set
Prix:	1-12000USD/set
Détails d'emballage:	Boîtes en polyvoix
Délai de livraison:	En stock
Conditions de paiement:	T / T ou L / C
Capacité d'approvisionnement:	1000 ensembles / an

Contactez

Description de produit détaillée

Taper:	fuseau	Type de machine:	Équipement de forage
Matériel:	Carbone	Type de traitement:	Forge, moulage, soudant
Utiliser:	Mines de minerai	Couleur:	Rouge
Poids:	1200 kg sans unité d'alimentation	Dimension:	2220 * 900 * 1880 mm
Couple:	3300 nm	Vitesse rotative:	57; 99; 157: 217; 270; 470; 742; 1024
Personne de contact:	Lucy Fang	Whatsapp:	008615923510719

                                                        XY-2B Portable Core Drilling Rig

                          ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;
Skype: lucyfang9 ; Website: www.lucydrillingrig.com email: lucyfang15@yahoo.com;
                                   M: +86-13628481197 TEL.:+86-15111813754 ; +86-15923510719

Applications:

XY-2B drill rig derived from XY-2 drill rig, it not only keeps all performances of XY-2 drill, but also adds spindle inner hole diameter to 96mm. It is mainly used in shallow and medium deep diamond and tungsten carbide core drilling, can also be used in geotechnical, hydro-geological, water well and mini-pile grouting hole drilling.It is especially suitable for constructions of hydroelectric power station, highway, railroad and harbor etc. In common with XY-2 drill in all design but hydraulic chuck and rotary head modified.

Technical Specifications

Drilling capacity (m)	AW rod	530 m
	BW rod	420 m
	NW rod	320 m
	AQ rod	565 m
	BQ rod	460 m
	NQ rod	350 m
	HQ rod	250-300 m
	Φ73 rod	100 m
	Φ60 rod	200 m
	Φ50 rod	380 m
	Φ42 rod	530 m
Spindle speed(r/min)	Forward	57;99;157;217;270;470;742;1024
Spindle speed(r/min)	Reverse	45;212
Max torque(Nm)		3300
Angle range		0-90°
Spindle max pulling/pushing force(KN)		60/45
Spindle stroke (mm)		560
Hoist max lift capacity with single rope (KN)		30
Spindle inner dia. (mm)		96
Oil pump		CBK1020/8
Power unit	Electric motor	Y180L-4,22Kw
Power unit	Diesel engine	395K2,19.85Kw
Overall dimension(LWH) mm		2220×900×1880
Drill weight(excluding power)(kg)		1200

Chongqing High Quality XY-2B Portable Earth Auger Drilling Rig

Coordonnées

Chongqing Spring Tech And Trade Co., Ltd

Personne à contacter: Ms. Lucy Fang

Téléphone: 0086--15923510719

Télécopieur: 86--1858026
