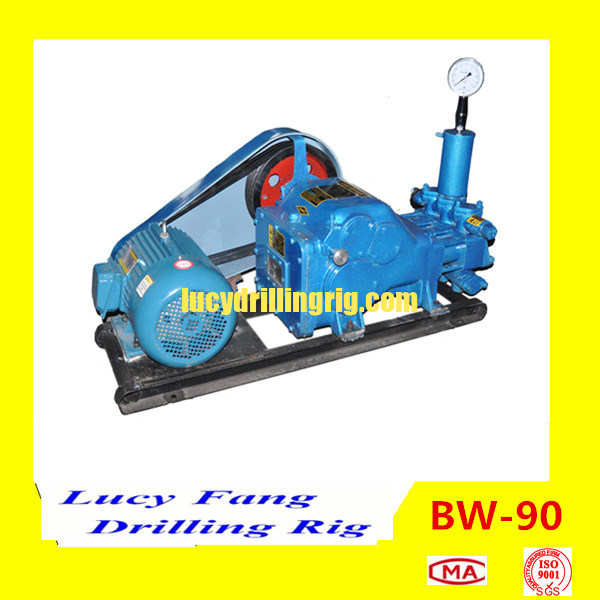

BW90-3 Mud Pump
ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;
Skype: lucyfang9 ; Website: www.lucydrillingrig.com, email: lucyfang15@yahoo.com;
M: +86-13628481197 TEL.:+86-15923510719,15111813754
Applications:
The mud pump is mainly used for shallow-hole diamond drilling to deliver drilling fluids to the drilling hole. It can be used together with 300m diamond small-borehole rig. In addition, it also can be used for steel particles and tungsten carbide drilling to transport fresh water, emulsions, mud and cement slurry, etc..
Features:
1.The mud pump is a horizontal three-cylinder single acting reciprocating piston pump obtaining three flow levels with a large change by mechanic speed change. To meet drilling needs, the pump is designed to have a simple and compact structure to facilitate disassembly, installation and repair and take light weight and small volume to facilitate relocation.
Technical specifications:
Type Horizontal three-cylinder single acting
Cylinder diameter ( mm ) Φ65
Stroke ( mm ) 50
Times of stroke ( times / min ) 220 156 115
Displacement ( L / min ) 90 65 50
Pressure ( MPa) 1 2 3
Suction height ( M ) 3
Input power ( KW ) 5.5
Suction hose diameter ( mm ) Φ38
Drain hose diameter ( mm ) Φ22
Overall dimensions (LxBxH)( mm) 1220x590x550
Weight ( Kg ) 205
