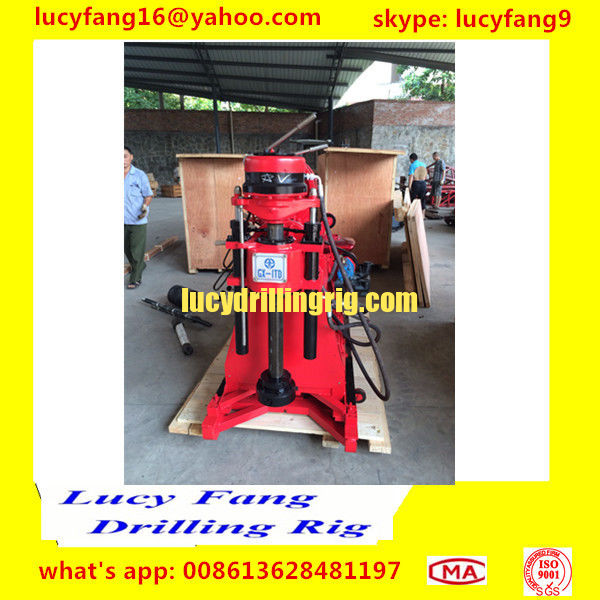

GX-1TD Skid Mounted Core Drilling Rig
ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District,Chongqing 400030 China
Skype: lucyfang9;Website:www.lucydrillingrig.com, email: lucyfang16@yahoo.com
Mobile: +86-13628481197 TEL.:+86-15923510719 Fax.:+86-23-65311383
1. APPLICATIONS:
Geological drilling for railroad, highway, bridge tunnel, power station foundation, civil and industrial buildings and blasting hole etc.
2. FEATURES:
◆ Spindle type, mechanical transmission, hydraulic feeding, and steel skid frame mounted.
◆ Hydraulic retracting lets drill body away from the drill hole, in order to hoist or lower the drilling tools.
◆ Hydraulic chuck, labor saving.
◆ Advanced design, multi-function, compact structure, lightweight, good detachability, easy to operate.
◆ Large-powered, reasonable range of speeds, large torque, suitable for many drilling methods.
◆ According to user's requirements the drilling machine can be equipped with mud-pump, a variety kinds of drilling tools, A-derrick etc, for client choice.
3. Technical Specifications
|
final hole dia. (mm)
|
150;130;110;91;75
|
|
drilling capacity (m)
|
30;50;70;100;150
|
|
angle range
|
0-90°
|
|
spindle speeds (r/min)
|
90;191;360;600
|
|
max torque (Nm)
|
1000
|
|
Max pull force (KN)
|
27
|
|
spindle stroke (mm)
|
450
|
|
max hoisting force with single line (KN)
|
14.7
|
|
Oil pump
|
CB32 gear oil pump
|
|
Power unit
|
diesel engine
|
S1100A 2200r/min 11KW
|
|
electric motor
|
Y160M-4 1460r/min 11KW
|
|
Weight (Excluding power)(kg)
|
500
|
|
overall dimension (L×W×H)(mm)
|
1560×620×1205
|
