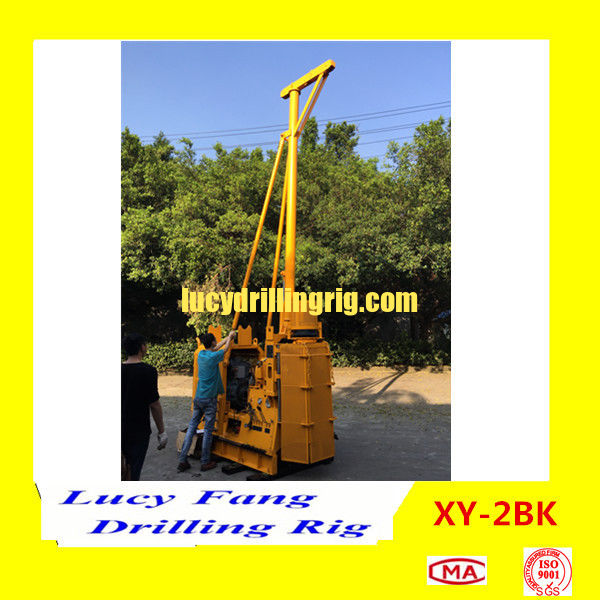

XY-2BK Portable Core Drilling Rig
ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China
Skype: lucyfang9 , Website: www.lucydrillingrig.com email: lucyfang15@yahoo.com;
M: +86-13628481197 TEL.:+86-15111813754 ; +86-15923510719
Applications:
XY-2BK type drilling rig is a kind of spindle drilling rig with a tower crane for shallow hole core drilling. It not only is for TC bit, diamond bit drilling of small hole, also can be used for engineering geological exploration, hydrology, wells, and the construction of large diameter drilling and anchor hole construction. It has small volume, light weight, installed power of large, wide performance, versatility and characteristics.
Feature:
1 Rig with more (8 block) the speed of progression and reasonable speed range( when the machine speed 1500r/min, maximum speed of the drilling rig for 1024 R/min, minimum speed for 57r/min). And relatively large low-speed torque, the use of a wide range.
2 The rig has two reverse speed (45 r/min, 212 r/min), which is easy to deal with the accident.
3The machine power is large.
4 The structure is advanced, the layout is reasonable, it is convenient for maintenance, maintenance and repair.
4Drilling machine has the advantages of small volume, light weigh, good detachability. Total weight excluding power only 950kg. it can be decomposed into eight parts, and maximum unit weight 140kg, convenience to move, especially good for working in mountainous areas and regions of rivers and lakes.
5 Vertical feed stroke as long as 490mm, is conducive to improve drilling efficiency, reduce plugging drilling, and other burning accidents.
6 The moving is stable, the fixed is simple and reliable, and the high speed drilling is stable.
7 Rig has double oil pump, less power consumption, lower oil temperature of hydraulic system.
8 The drilling pressure table and hydraulic pressure gauge are combined together as one, has the oil filled shock-proof structure.
9 Value scale is simple, accurate, and long service life.
10 Drill control handle less, layout is reasonable, flexible and reliable operation.
11 In addition to the high speed drilling, it can also be carried out drilling large diameter hole in low speed.
12 In addition there is a normally closed hydraulic chuck, is also equipped with a mechanical manual chuck
After a certain period of the rig, the continuous improvement of the product structure, the contents of this manual may be different from the actual product.
Technical Specifications
|
Drilling capacity (m)
|
AW rod
|
530 m
|
|
BW rod
|
420 m
|
|
NW rod
|
320 m
|
|
AQ rod
|
565 m
|
|
BQ rod
|
460 m
|
|
NQ rod
|
350 m
|
|
HQ rod
|
250-300 m
|
|
Φ73 rod
|
100 m
|
|
Φ60 rod
|
200 m
|
|
Φ50 rod
|
385 m
|
|
Φ42 rod
|
530 m
|
|
Spindle speed(r/min)
|
Forward
|
57;99;157;217;270;470;742;1024
|
|
Reverse
|
45;212
|
|
Max torque(Nm)
|
3200
|
|
Angle range
|
0-90°
|
|
Spindle max pulling/pushing force(KN)
|
60/45
|
|
Spindle stroke (mm)
|
560
|
|
Hoist max lift capacity with single rope (KN)
|
30
|
|
Spindle inner dia. (mm)
|
96
|
|
Oil pump
|
CBK1020/8
|
|
Power unit
|
Electric motor
|
Y180L-4,22Kw
|
|
Diesel engine
|
395K2,19.85Kw
|
|
Overall dimension(L*W*H) mm
|
2220×900×1880
|
|
Drill weight(excluding power)(kg)
|
1200
|
