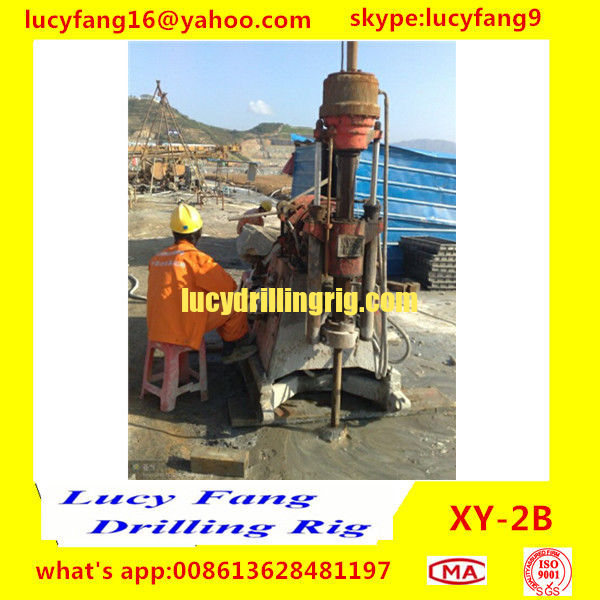

China XY-2B Soil and Rock Core Drilling Rig for Minerals Exploration With 50-500 m and NQ

China XY-2B Soil and Rock Core Drilling Rig for Minerals Exploration With 50-500 m and NQ

    • China XY-2B Soil and Rock Core Drilling Rig for Minerals Exploration With 50-500 m and NQ
    • China XY-2B Soil and Rock Core Drilling Rig for Minerals Exploration With 50-500 m and NQ
    • China XY-2B Soil and Rock Core Drilling Rig for Minerals Exploration With 50-500 m and NQ
    • China XY-2B Soil and Rock Core Drilling Rig for Minerals Exploration With 50-500 m and NQ
    • China XY-2B Soil and Rock Core Drilling Rig for Minerals Exploration With 50-500 m and NQ
    • China XY-2B Soil and Rock Core Drilling Rig for Minerals Exploration With 50-500 m and NQ

    Détails sur le produit:

    Lieu d'origine: Chongqing
    Certification: ISO9001-2008
    Numéro de modèle: XY-2B

    Conditions de paiement et expédition:

    Quantité de commande min: 1 set
    Prix: 1-12000USD/set
    Détails d'emballage: Boîtes en polyvoix
    Délai de livraison: En stock
    Conditions de paiement: T / T ou L / C
    Capacité d'approvisionnement: 1000 ensembles / an
    Contactez
    Description de produit détaillée
    Taper: fuseau Type de machine: Équipement de forage
    Matériel: Carbone Type de traitement: Forgeage
    Utiliser: Mines de minerai

                                                            XY-2B  Portable Core Drilling Rig

                                   ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;
                                          Skype: lucyfang9 ; Website: www.lucydrillingrig.com email: lucyfang15@yahoo.com;
                                        M: +86-13628481197 TEL.:+86-15111813754 ; +86-15923510719



    Applications:

         XY-2B drill rig derived from XY-2 drill rig, it not only keeps all performances of XY-2 drill, but also adds spindle inner hole diameter to 96mm. It is mainly used in shallow and medium deep diamond and tungsten carbide core drilling, can also be used in geotechnical, hydro-geological, water well and mini-pile grouting hole drilling.It is especially suitable for constructions of hydroelectric power station, highway, railroad and harbor etc. In common with XY-2 drill in all design but hydraulic chuck and rotary head modified.



    Technical Specifications




    Drilling capacity (m)

    AW rod

    530 m

    BW rod

    420 m

    NW rod

    320 m

    AQ rod

    565 m

    BQ rod

    460 m

    NQ rod

    350 m

    HQ rod

    250-300 m

    Φ73 rod

    100 m

    Φ60 rod

    200 m

    Φ50 rod

    380 m

    Φ42 rod

    530 m


    Spindle speed(r/min)

    Forward

    57;99;157;217;270;470;742;1024

     Reverse

    45;212


    Max torque(Nm)

    3200


    Angle range

    0-90°


    Spindle max pulling/pushing force(KN)

    60/45


    Spindle stroke (mm)

    560


    Hoist max lift capacity with single rope (KN)

    30


    Spindle inner dia. (mm)

    96


    Oil pump

    CBK1020/8


    Power unit


    Electric motor

    Y180L-4,22Kw


    Diesel engine

    395K2,19.85Kw


    Overall dimension(L*W*H) mm

    2220×900×1880


    Drill weight(excluding power)(kg)

    1200



    China XY-2B Soil and Rock Core Drilling Rig for Minerals Exploration With 50-500 m and NQ

    China XY-2B Soil and Rock Core Drilling Rig for Minerals Exploration With 50-500 m and NQ

    China XY-2B Soil and Rock Core Drilling Rig for Minerals Exploration With 50-500 m and NQ



    China XY-2B Soil and Rock Core Drilling Rig for Minerals Exploration With 50-500 m and NQ
