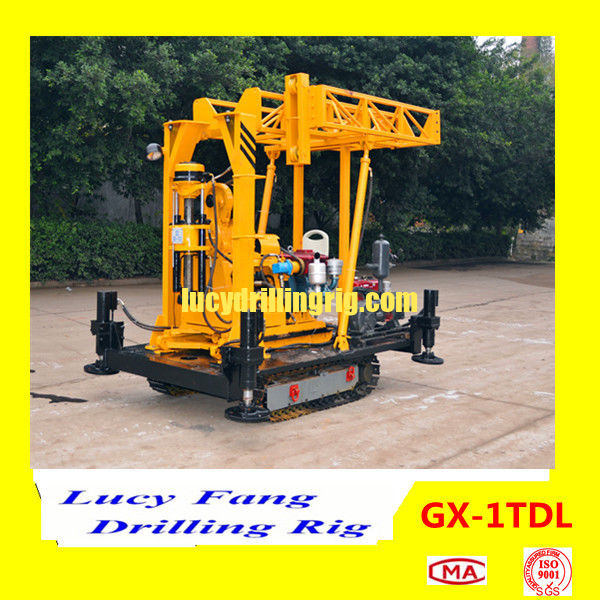

GX-1TDL Crawler Geotechnical Core Drilling Rig
ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;
Contact person: Lucy Fang; Skype: lucyfang9 ; website: www.lucydrillingrig.com ;
email: lucyfang15@yahoo.com Mobile: +86-13628481197 TEL.:+86-15923510719
APPLICATIONS:
GX-1TDL drill rig derived from GX-1TD core drill rig, and it is a new kind of core drilling rig which integrates drilling rig, crawler, mast, mud pump, control panel and many other devices into one unit. The new drilling rig is a kind of integration and modular drilling equipment with rapid migration; it is designed mainly for geotechnical drilling for railroad, highway, bridge, tunnel, hydropower station, civil and industrial buildings and blasting holes etc. such as the shallow holes, special for small hole spacing, and relocation of high frequency and so on.
FEATURES:
1, Integrate the drill rig, crawler , mast, mud pump, control panel into one unit.
2, Walking of the crawler, base support and the rising and falling of the mast are all driven by the hydraulic system of the drilling rig , and it is very easy to operate.
3, The whole drilling equipment can be moved in whole, increasing drilling efficiency and reducing labor intensity.
4, Having mast landing and folded function, it is to walk and transport.
5, The drilling rig is spindle type, mechanical transmission, hydraulic feeding, and hydraulic clamping drilling tool. When rotary drilling it can carry out alloy-bit drilling and diamond drilling. When impact drilling it can achieve impact—vibration casing while drilling.
Technical Specifications
Drilling Depth 150-30m
Drilling hole caliber 76-150 mm
Spindle Speeds 90； 191； 360； 600 r/min
Max Torque 1000 N•m
Max Pull Force 27 KN
Spindle Stroke 450 mm
Max Hoisting Force with Single Line 14.7 KN
Max Hoisting Force with Single Line 14.7 KN
Winch Capacity ( five layers) 25 m
Winch Lift Speed 0.6,1.27,2.37 m/s
Away distance from drilling hole 125 mm
Power Unit diesel engine 12KW
electric motor 11KW
Mud Pump (option) BW-160
Crawler Max. Tow Force 18.97 KN
Crawler highest Speed of Travel 1.5 km/h
Crawler Crawling Angle Less 25°
Crawler Ground Pressure 0.06 MPa
Height of mast 6 m
Tower’s Hook Hoisting Load 15 kN
Maximum Static Load of Crown block Beam 30 kN
The Raise or Lower Angle of Mast Tower 0°～ 90°
Overall dimension Transportation L*W*H 2970×2090×2660 mm
Drilling Position L*W*H 2900×2090×6550 mm
Total Weight About 2000 kg
